Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

产品标签

性能

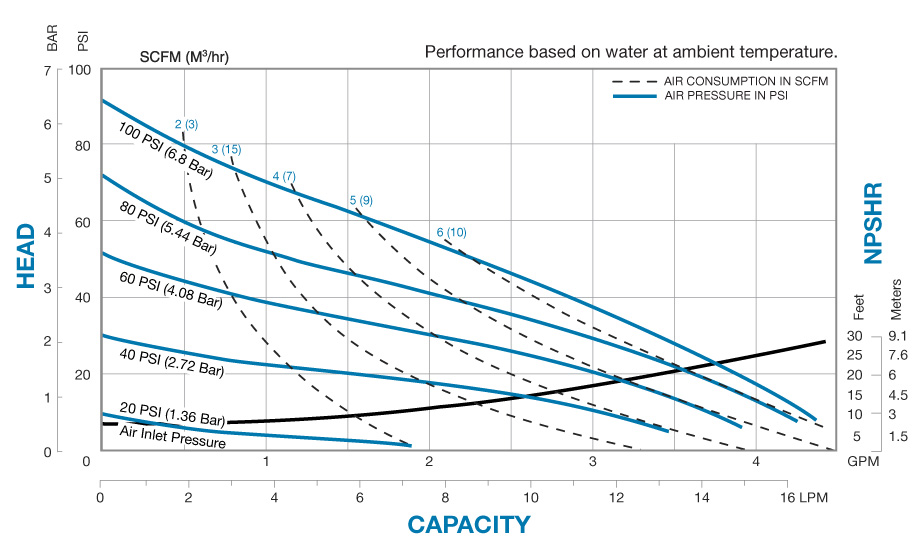

E02 Metallic Performance Curve
产品规格
Port Size
1/4" BSP Parallel
Capacity
0 to 4.75 gpm (18 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
1/16" (1 mm)
Heads Up To
125 psi or 298 ft. of water (8.6 bar or 88 meters)
Displacement/Stroke
.048 gallons (.015 liters)
Max Operating Pressure
125 psi (8.6 bar)
Shipping Weight
Stainless Steel: 8.82 lbs. (4.0 kg)
