Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

产品标签

性能

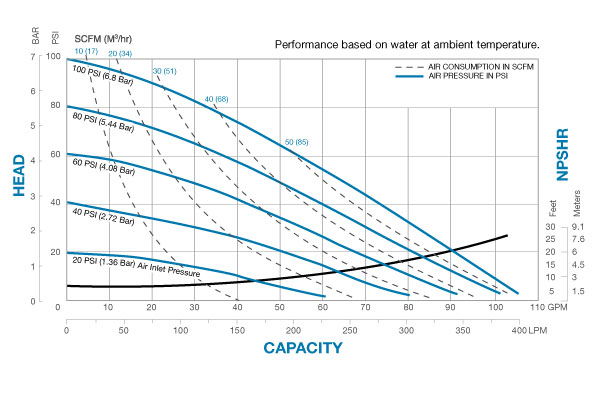

S15 Metallic Performance Curve
产品规格
Port Size
1 1/2" NPT (Internal)
1 1/2" BSP (Tapered)
1 1/2" ANSI 150# Raised Face Flanges
Capacity
0 to 106 gpm (401 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .25" (6 mm)
Heads Up To
125 psi or 289 ft. of water (8.6 bar or 88 meters)
Displacement/Stroke
.41 gallons (1.55 liters)
Max Operating Pressure
125 psi (8.6 bar)
Shipping Weight
Aluminum: 53 lbs. (24 kg)
Cast Iron: 93 lbs. (42 kg)
Stainless Steel: 95 lbs. (43 kg)
